04 – 06 Pontiac GTO TCS Disable Mod

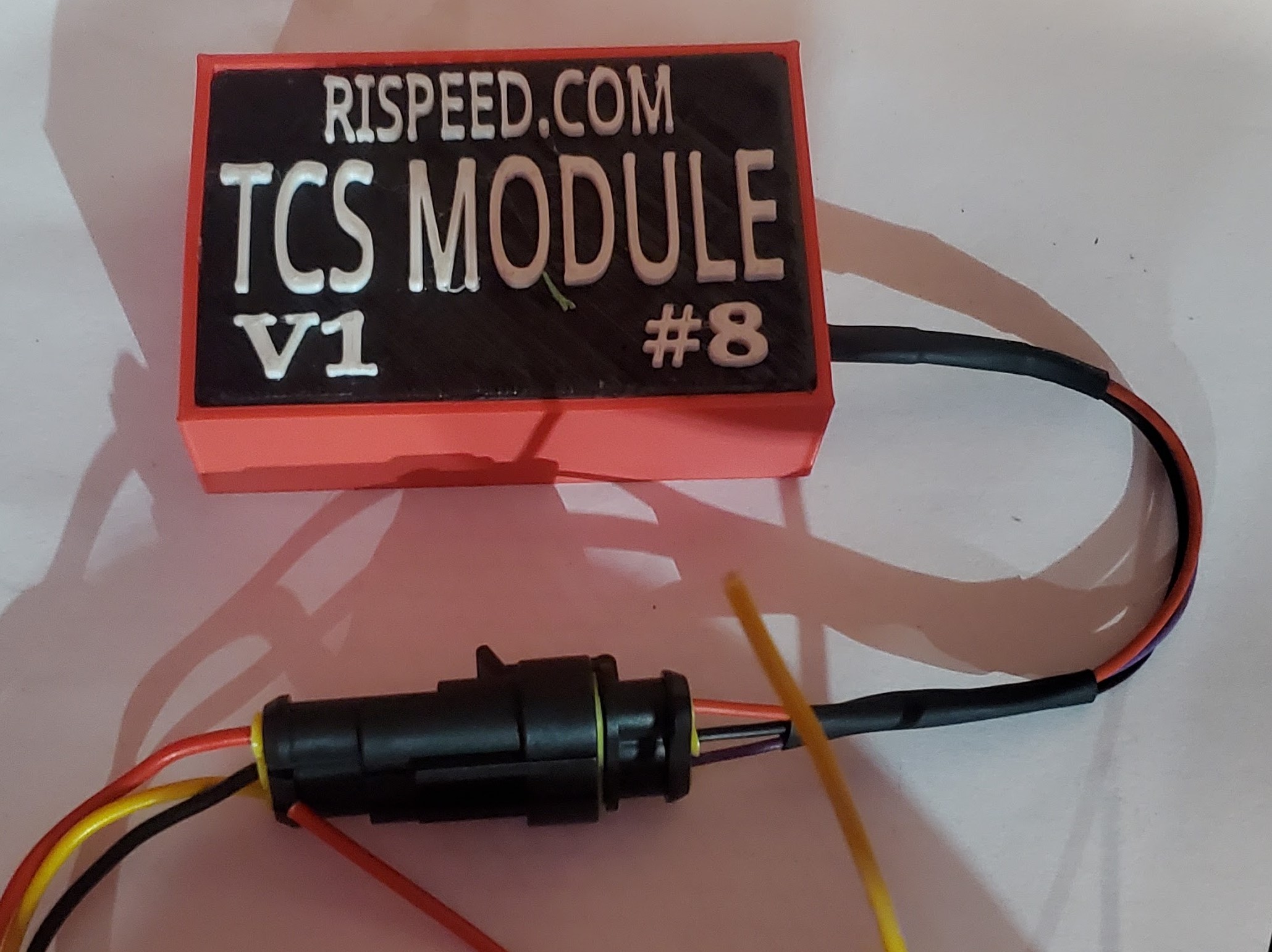

TCS MODULE

2004 – 2006 GTO Traction Control Reverse Module.

Disables Traction Control Automatically When You Start The car.



Want to build your own TCS Module? Coming Soon!

This module will automatically disable your cars traction control when you start the car. It was made to work on 2004-2006 Pontiac GTOs , but it will work on many other cars as well .

The 3 wire Installation is very easy and requires minimum wiring skills. It also retains factory functionality of the regular traction control switch so you can turn on and off like normal.

  • Red wire goes to switched Ignition Power
  • Black to Ground.
  • Output wire (color varies) has to be soldered inline to the traction control switch output signal.

Comes with supplied connectors to make your own leads. When connecting to the traction control switch the smaller gauge output wire may vary in color and must be connected in the middle of the wire without cutting it. I do not recommend using wire taps this should be soldered.  If the wire gets damaged stripping it you can cut it and solder it back together with your lead to the module.

You can get the switched power from the window switch.

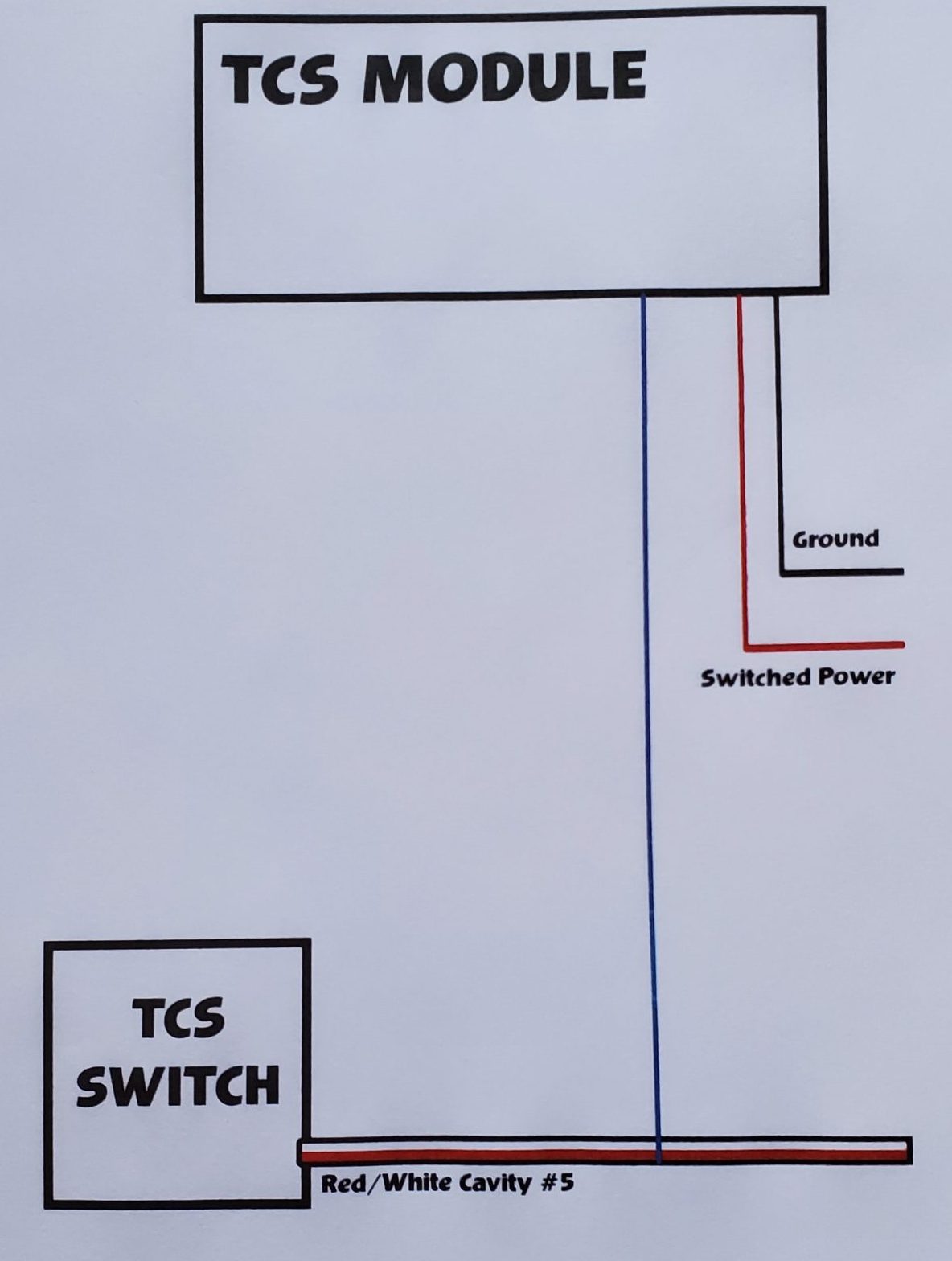

tcs mod wiring
INSTALLATION DIAGRAM

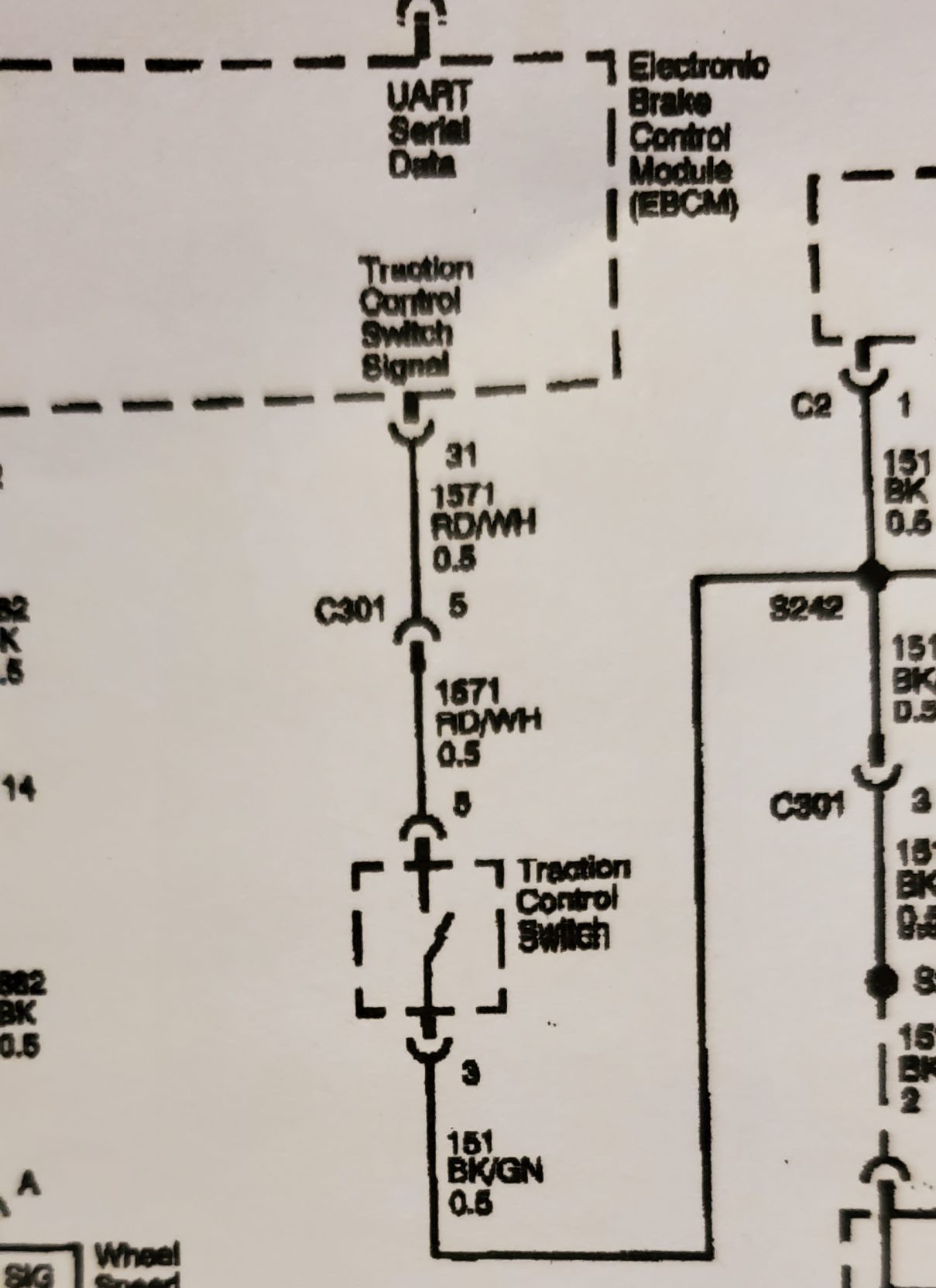

GTO TCS SWITCH WIRING
GTO TCS SWITCH WIRING DIAGRAM

$25 Dollars Paypal - Free Shipping to USA
